Recently, Prof. Hao Chen’s team at HKUST, in collaboration with The Chinese University of Hong Kong (CUHK) and Nanfang Hospital of Southern Medical University, published a new paper in Nature Communications (IF = 15.7): “Generative AI for misalignment-resistant virtual staining to accelerate histopathology workflows”.

The study presents DGR (Decoupled Generation and Registration), a misalignment-resistant virtual staining framework that addresses spatial distortions caused by tissue deformation during chemical staining, and provides a scalable solution for practical pathology workflows.

Introduction

Histopathology is a cornerstone of clinical diagnosis, relying on chemically stained tissue slides to reveal disease-related morphology and molecular signals. In practice, however, conventional staining is labor-intensive, time-consuming, tissue-consuming, and environmentally costly.

Virtual staining has emerged as a promising alternative by translating one imaging modality into another with deep learning. Yet most existing methods require perfectly aligned paired data for pixel-level supervision. This assumption is difficult to satisfy in real-world workflows, because tissue deformation during processing introduces unavoidable spatial misalignment, and repeated staining on the same section often damages tissue integrity.

To address this bottleneck, we propose DGR, a robust framework with a cascaded registration strategy that decouples image generation from alignment correction. This design enables high-fidelity virtual staining under imperfectly paired data, reducing data curation burden and improving practicality for clinical deployment.

Across five datasets and four staining tasks, DGR demonstrates clear improvements: average gains of 3.2% on internal datasets and 10.1% on external datasets. Under severe misalignment, DGR improves PSNR by up to 3.4 dB (23.8%) over baseline methods. In blinded pathologist evaluation, experienced pathologists achieved only around 52% accuracy in distinguishing virtual from chemical staining, indicating no statistically significant diagnostic difference.

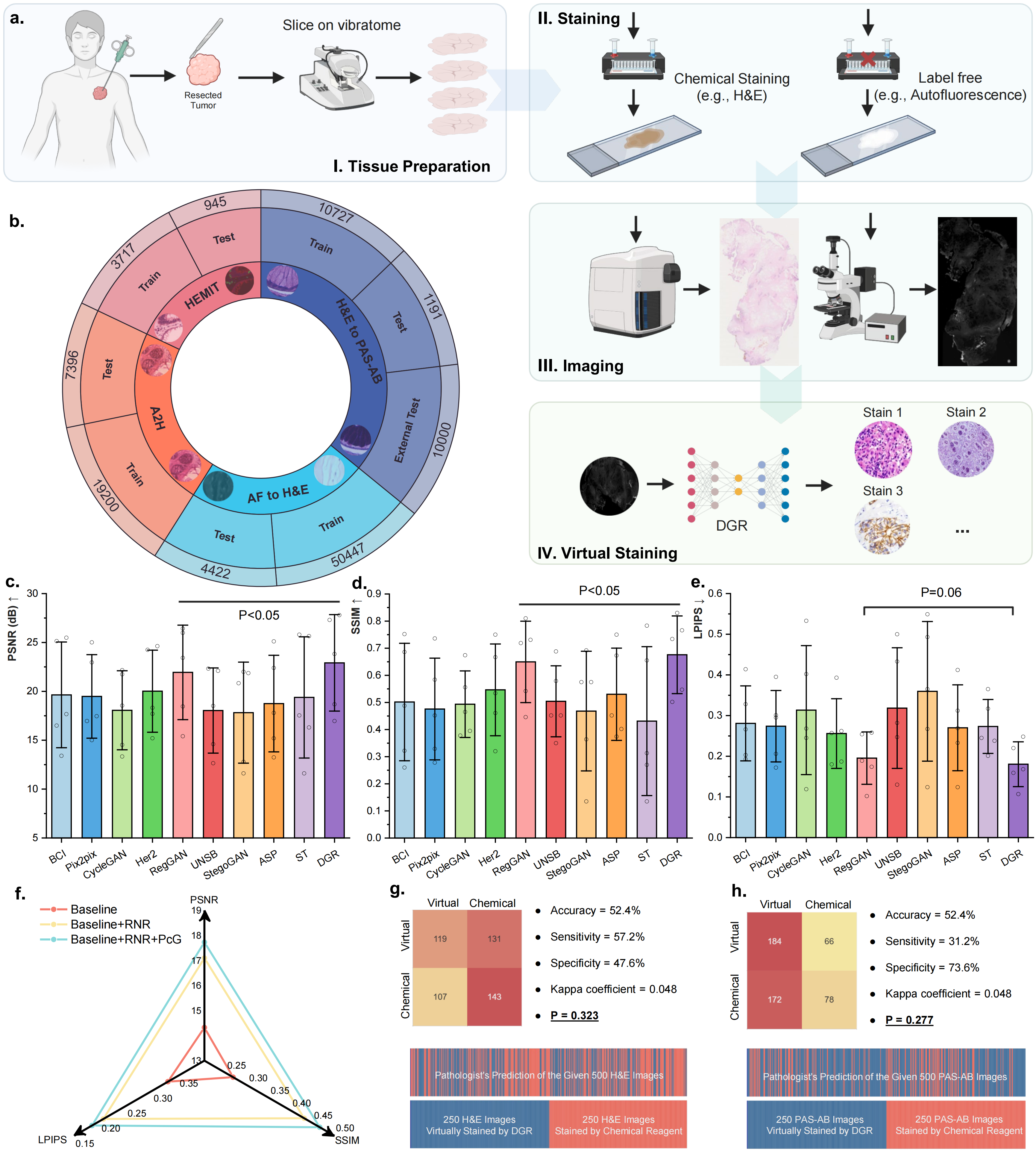

Fig. 1 summarizes the end-to-end virtual staining workflow and key evaluations:

• (a) pipeline from tissue sampling to virtual stain generation,
• (b) dataset composition,
• (c–e) quantitative comparison on PSNR/SSIM/LPIPS,
• (f) robustness under severe synthetic misalignment,
• (g–h) blinded pathology evaluation on H&E and PAS-AB.

Method

DGR contains two key modules:

1. Registration for Noise Reduction (R1): aligns generated images with roughly paired ground-truth targets, reducing the impact of noisy misregistration in reconstruction supervision.
2. Position-Consistency Generation (R2): enforces spatial consistency between generated outputs and input images through adversarial training, ensuring the generator focuses on stain translation rather than geometric warping.

Unlike prior coupled approaches (e.g., RegGAN), DGR explicitly separates generation and registration. This avoids a common failure mode where generators hide structural misalignment and rely on downstream registration to compensate. Importantly, DGR can be integrated into existing virtual staining pipelines without modifying their backbone architectures.

In short, DGR imposes dual constraints: one for reliable reconstruction supervision under noisy pairing (R1), and one for preserving spatial consistency between input and generated images (R2). This enables robust learning from roughly paired data while maintaining anatomical faithfulness.

Results

We evaluated DGR across five datasets and four staining translation tasks:

• Autofluorescence to H&E: DGR achieved the best quantitative and perceptual performance, including PSNR 22.914 dB (+4.4%) and SSIM 0.766 (+4.8%), while reducing LPIPS and FID by 15.9% and 12.0% compared with the next-best method.
• H&E to PAS-AB: On internal testing, DGR improved PSNR and SSIM by 1.2% and 1.0%; on external testing, gains reached 10.1% (PSNR) and 8.0% (SSIM), showing strong generalization.
• H&E to mIHC: DGR delivered the best image quality and improved downstream classification performance (UniToPatho +2.4%, GCHTID +1.2%), while achieving the highest nucleus segmentation Dice score (0.422).
• H&E stain normalization: DGR outperformed all baselines in both fidelity and distribution-level metrics (PSNR 23.823, SSIM 0.734, FID 10.253, KID 0.007).

In a blinded pathologist study, experts distinguished virtual from chemical staining at near-chance level (about 52% accuracy), with no statistically significant difference. Under severe simulated misalignment, DGR also maintained clear robustness, improving PSNR by up to 3.4 dB over baseline methods.

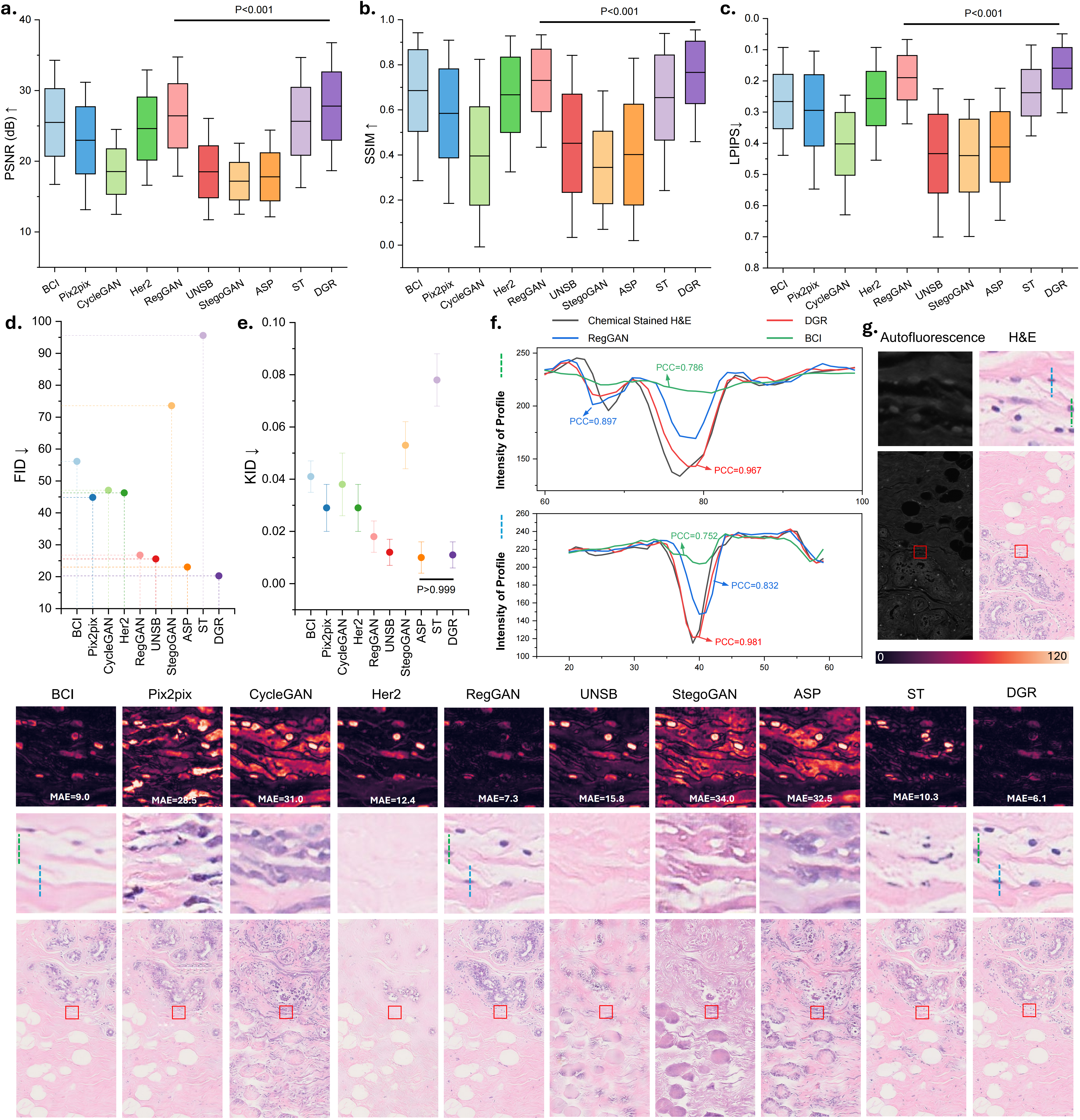

Task 1: Autofluorescence → H&E

• Best PSNR: 22.914 dB (+4.4%)
• Best SSIM: 0.766 (+4.8%)
• Best LPIPS/FID: LPIPS 0.159 and FID 20.264 (15.9% and 12.0% lower than the next best method)

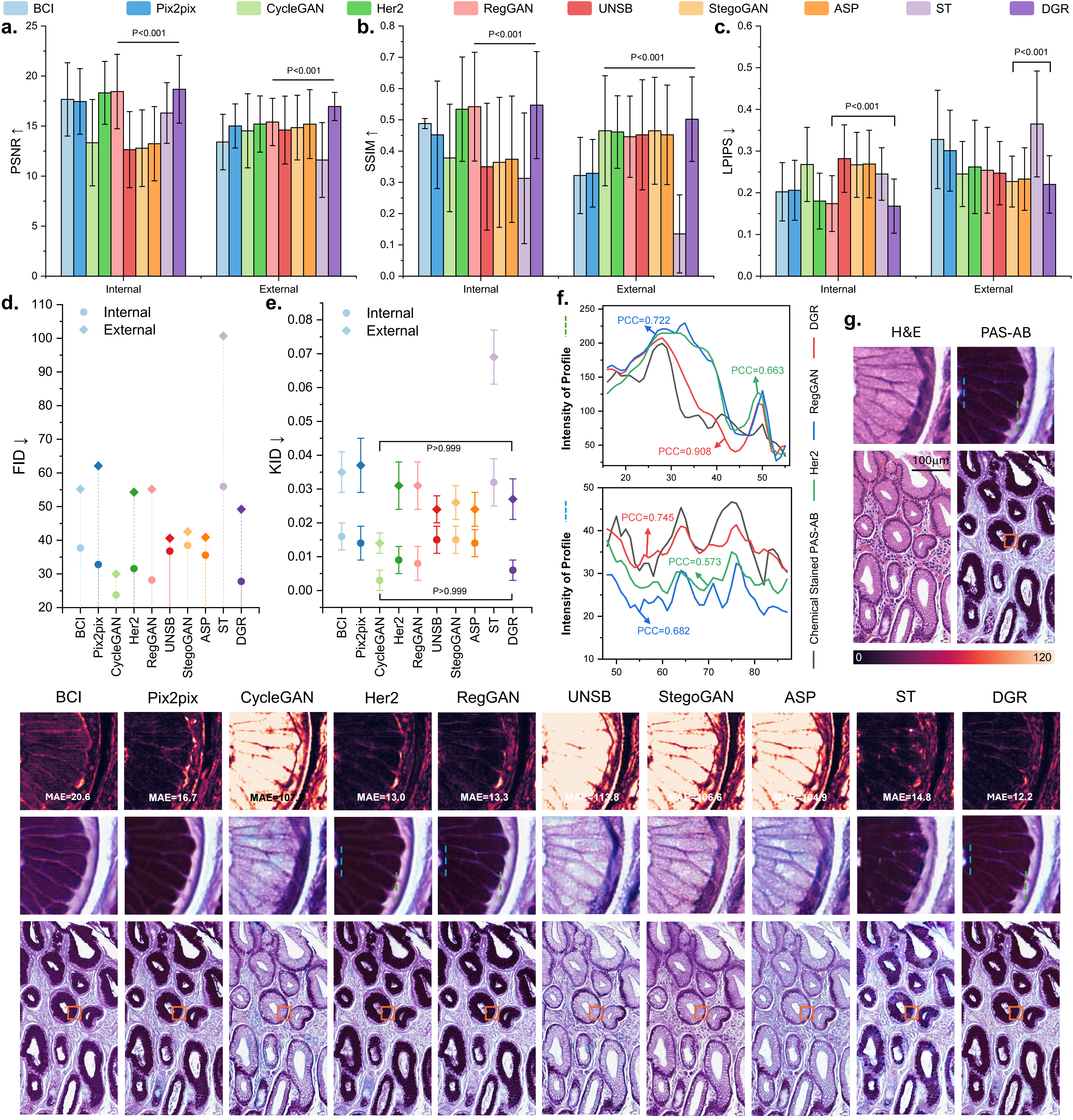

Task 2: H&E → PAS-AB

• Internal test: PSNR/SSIM gains of +1.2%/+1.0%
• External test: stronger gains of +10.1%/+8.0%
• LPIPS reduction on both internal and external sets

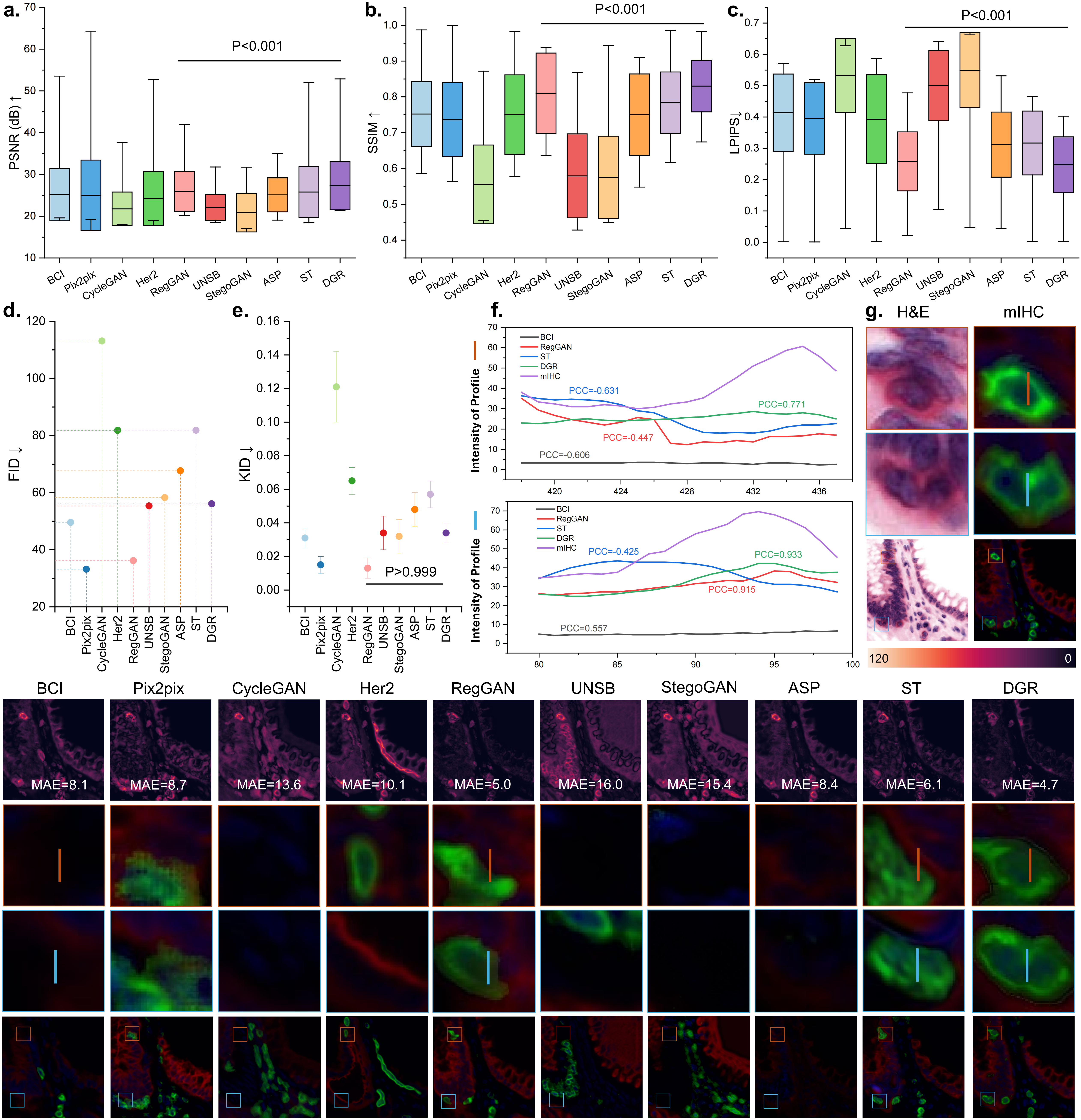

Task 3: H&E → mIHC

• Best image-level metrics across compared methods
• Best downstream task gains (+2.4% on UniToPatho, +1.2% on GCHTID)
• Highest nucleus segmentation Dice (0.422), indicating superior structure consistency

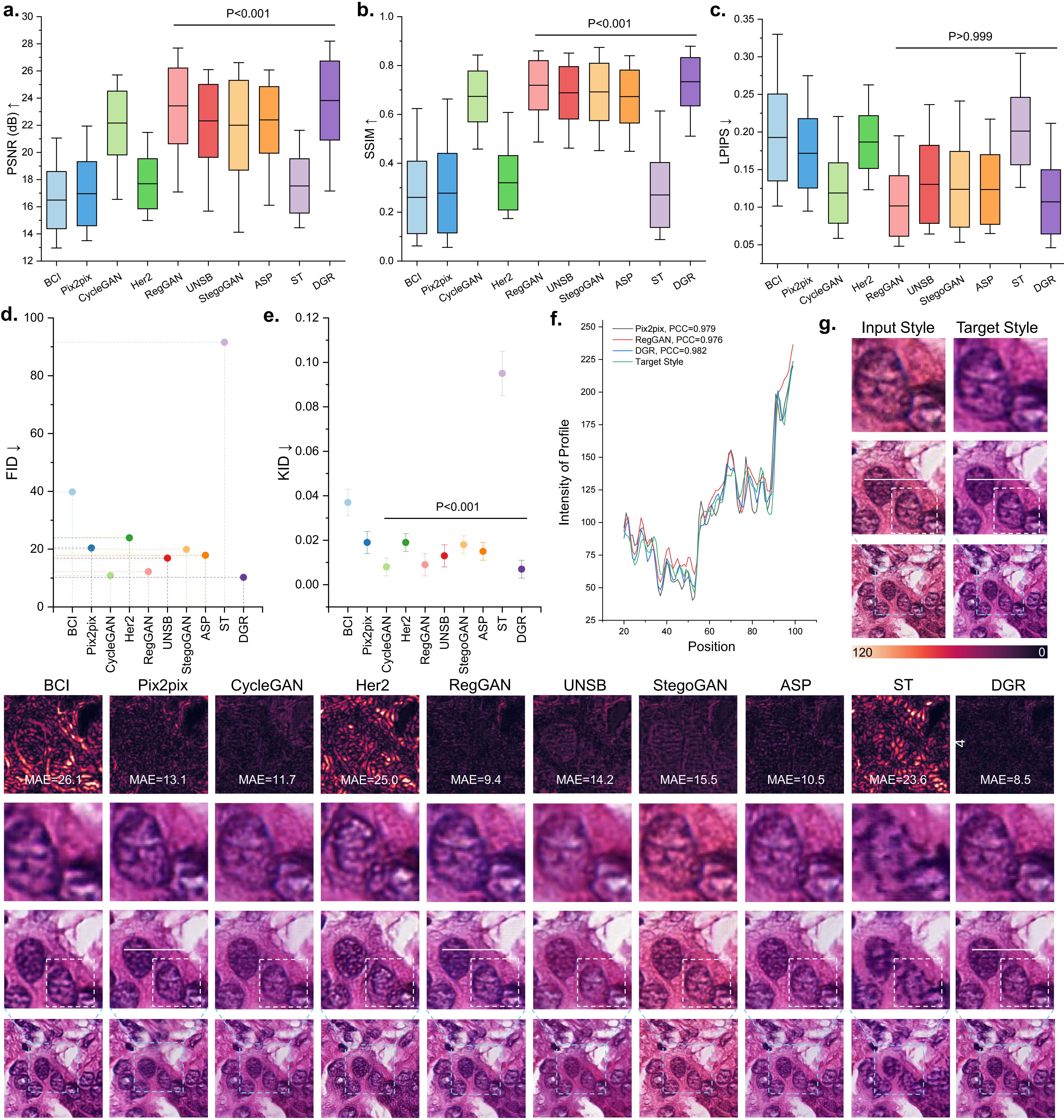

Task 4: H&E stain normalization

• Best fidelity and distribution scores simultaneously: PSNR 23.823, SSIM 0.734, FID 10.253, KID 0.007

Blinded human evaluation

• 250 virtual + 250 chemical H&E images, and 250 virtual + 250 chemical PAS-AB images
• Accuracy around 52.4% in both settings, with non-significant statistical difference

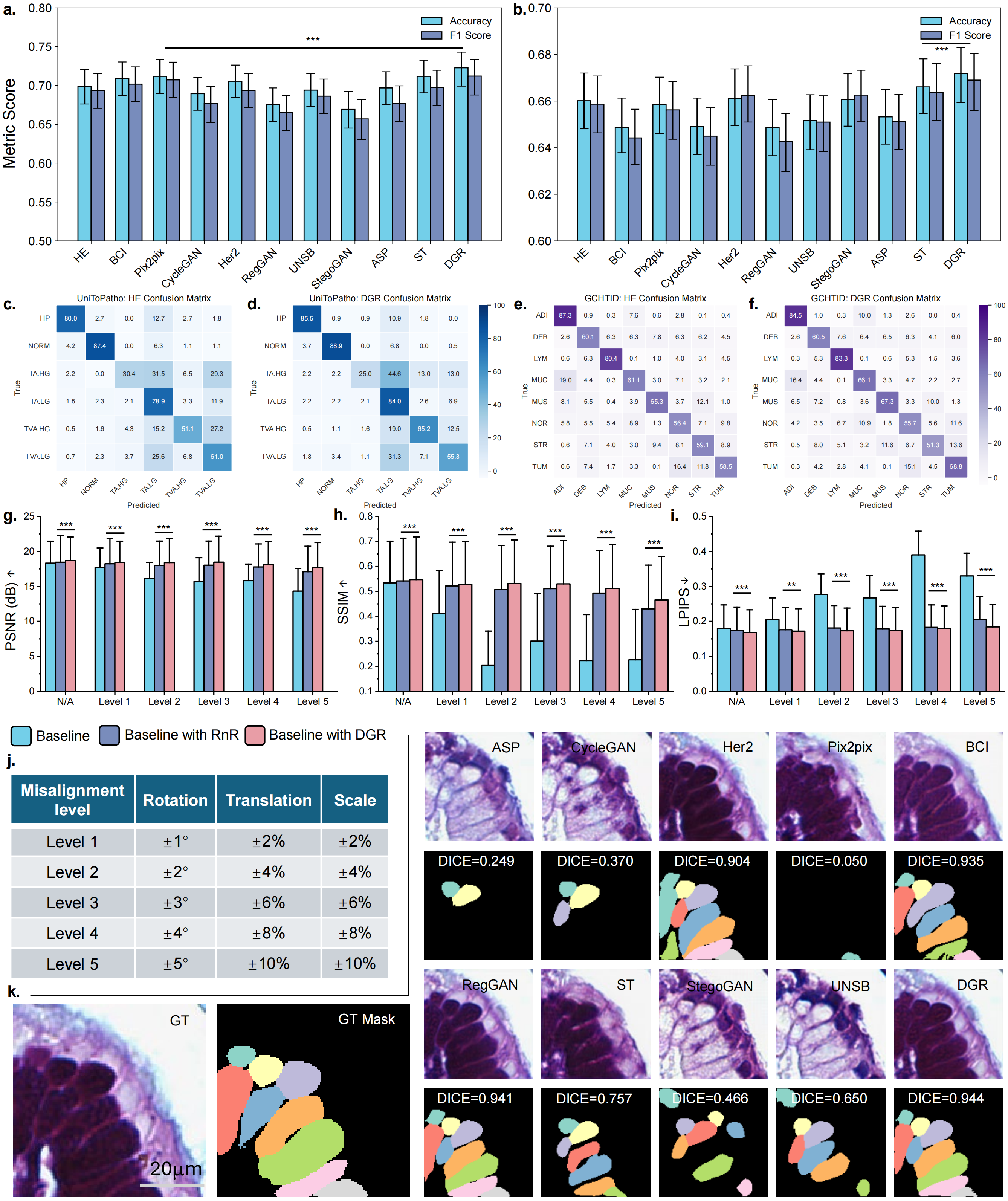

Misalignment robustness

• Built 11,918 well-aligned H&E–PAS-AB pairs and injected five levels of synthetic misalignment (rotation/translation/scaling)
• DGR consistently outperformed all baselines across all misalignment levels, with up to +3.4 dB PSNR under severe misalignment

Conclusion

DGR reframes misalignment from a nuisance to remove into an inherent property of histopathology workflows that models should tolerate. By decoupling generation and registration with dual constraints, DGR improves robustness to imperfect pairing while preserving anatomical consistency and staining realism.

The framework lowers data acquisition barriers, scales to practical clinical settings, and offers a general strategy for building resilient virtual staining systems. Future work will extend DGR to more staining modalities, tissue types, and end-to-end pathology applications such as tumor detection and grading.

More broadly, this work shifts the focus from unrealistic data perfection to algorithmic resilience, which is a critical step toward replacing resource-intensive chemical workflows in routine practice.

---

Resources

For more details, please see our paper Generative AI for misalignment-resistant virtual staining to accelerate histopathology workflows via Nature Communications.

Code: https://github.com/birkhoffkiki/DTR

Paper: “Generative AI for misalignment-resistant virtual staining to accelerate histopathology workflows” (Nature Communications, 2026)

Authors: Jiabo Ma, Wenqiang Li (co-first authors)

Corresponding Author: Hao Chen (jhc@cse.ust.hk), Professor, Department of Computer Science and Engineering, HKUST

Collaborations: HKUST, The Chinese University of Hong Kong, Nanfang Hospital of Southern Medical University
